Distribution type - Wenzhou mingneng Electrical co.,ltd

MOA type	Sys R.V	MOA R.V	MCOV	D.C.U1mA	1/10μs Steep current impulse	8/20μs Lighting current impulse	30/60μs Switching current impulse	2ms Rectangular current impulse(2ms)	4/10μs High curerent impulse	Fig No
MOA type	kV(r.m.s)			≮kV	≯kV			A	kA	Fig No
HY5WS-3.8/15*

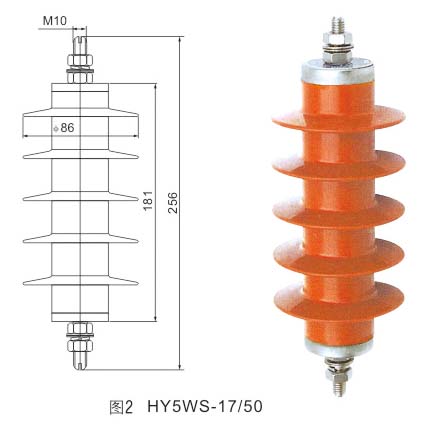

HY5WS-3.8/15*	3	3.8	2.0	7.5	7.3	15	12.8	75	40	图2
HY5WS-5/15	3	5	4.0	8.0	17.3	15	12.8	100	65	图2

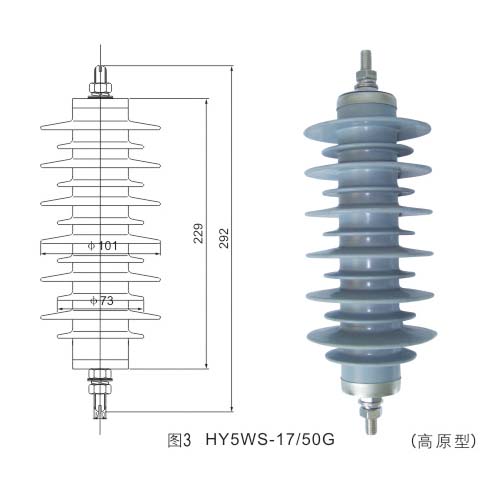

HY5WS-7.6/30*	6	7.6	4.0	15.0	34.5	30	25.5	75	40	图3

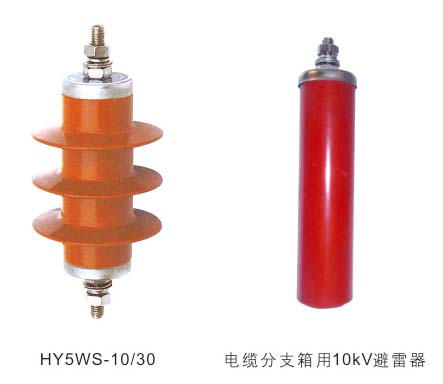

HY5WS-10/30	6	10	8.0	15.0	34.5	30	25.5	100	65	图3
HY5WS-12.7/50*	10	12.7	6.6	25.0	57.5	50.0	38.5	75	40	图4
HY5WS-17/50	10	17	13.6	25.0	57.5	50.0	38.5	100	65	图4
注：“*”者旧版标准型号
