Capacitor bank protection arresters - Wenzhou mingneng Electrical co.,ltd

MOA type	Sys R.V	MOA R.V	MCOV	D.C.U1mA	1/10μs Steep current impulse	8/20μs Lighting current impulse	2ms Rectangular current impulse(2ms)	4/10μs High curerent impulse	Fig No
MOA type	kV(r.m.s)			≮kV	≯kV		A	kA	Fig No
HY5WR-5/13.5	3	5	4.0	7.2	13.5	10.5	400	65

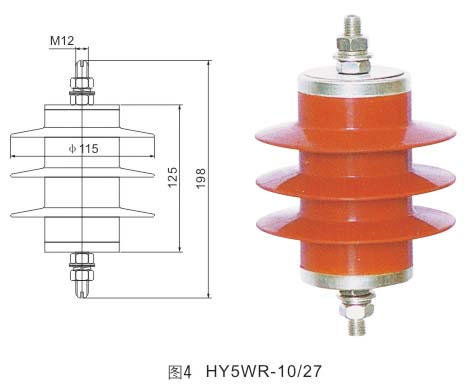

HY5WR-10/27	6	10	8.0	14.4	27.0	21.0	400	65	图4

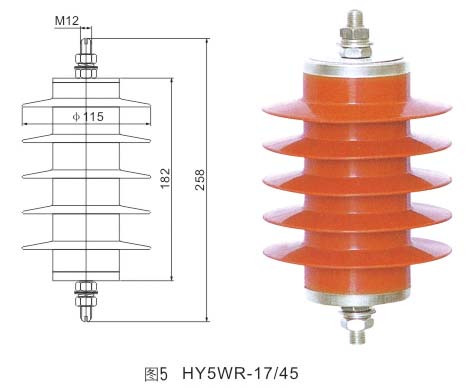

HY5WR-17/45	10	17	13.6	24.0	45	35.0	400	65	图5
HY5WR-51/134	35	51	40.8	73.0	134	105	400	100

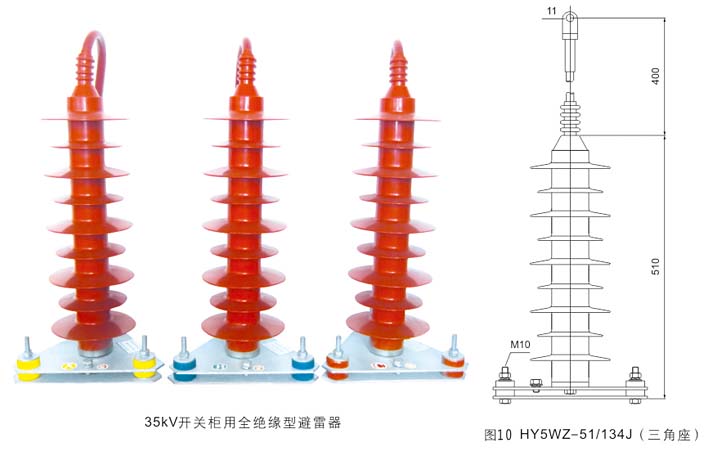

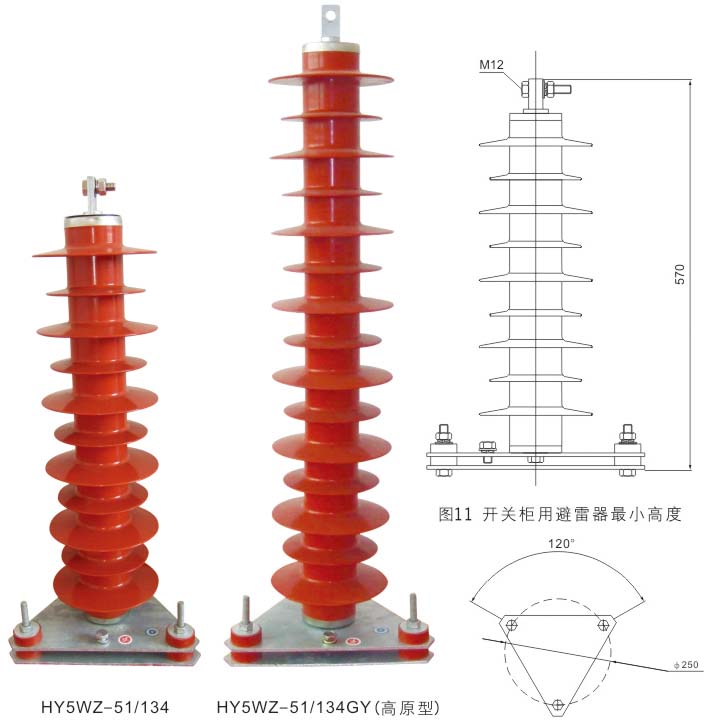

HY10WR-51/134*	35	51	40.8	73.0	134	104	600	100	图10、11
HY10WR-54/134*	35	54	43.2	75.0	134	105	600	100	图10、11
HY5WR-48/125*	35	48	38.4	70.0	125	102	600	100
HY5WR-51/134*	35	51	40.8	73.0	134	104	800	100
