Transformer neutral point type arresters - Wenzhou mingneng Electrical co.,ltd

MOA type	Sys R.V	MOA R.V	MCOV	D.C.U1mA	1/10μs Steep current impulse	8/20μs Lighting current impulse	2ms Rectangular current impulse(2ms)	4/10μs High curerent impulse	Fig No
MOA type	kV(r.m.s)			≮kV	≯kV		A	kA	Fig No

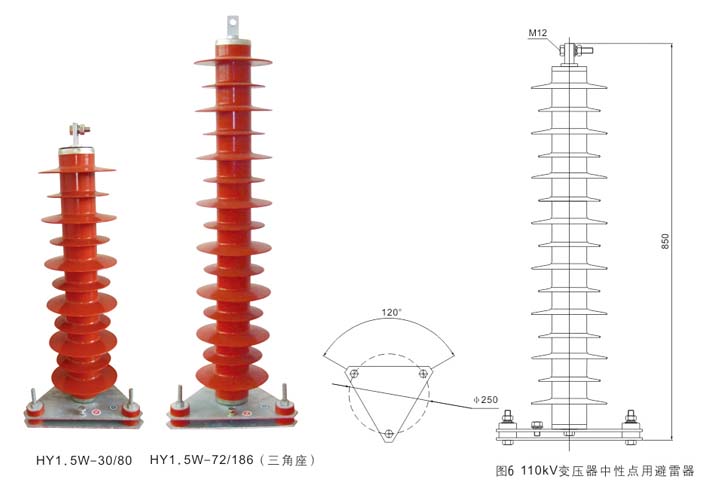

HY1.5W-30/80	35	30	24.0	44	80	76	400	65	图6

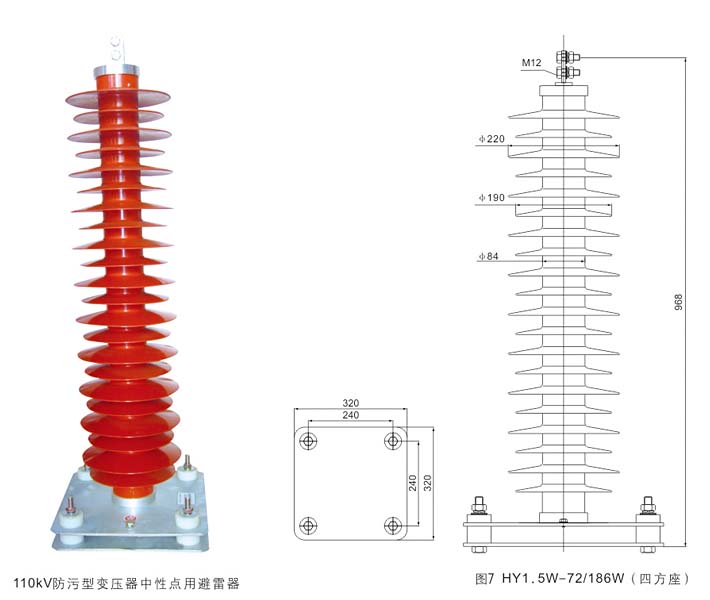

HY1.5W-55/132	110	55	44.0	79	132	126	400	100	图7
HY1.5W-60/144	110	60	48.0	86	144	135	400	100
HY1.5W-72/186	110	72	58.0	103	186	174	400	100
HY1.5W-73/200	110	73	58.0	105	200	165	400	100
HY1.5W-144/320	220	144	115.8	205	320	299	600	100	图19
HY1.5W-146/320	220	146	116.8	208	320	304	600	100	图19
