Power station type - Wenzhou mingneng Electrical co.,ltd

MOA type	Sys R.V	MOA R.V	MCOV	D.C.U1mA	1/10μs Steep current impulse	8/20μs Lighting current impulse	30/60μs Switching current impulse	2ms Rectangular current impulse(2ms)	4/10μs High curerent impulse	Fig No
MOA type	kV(r.m.s)			≮kV	≯kV			A	kA	Fig No
HY5WZ-5/13.5
HY5WZ-5/13.5	3	5	4.0	7.5	15.5	13.5	11.5	150	65

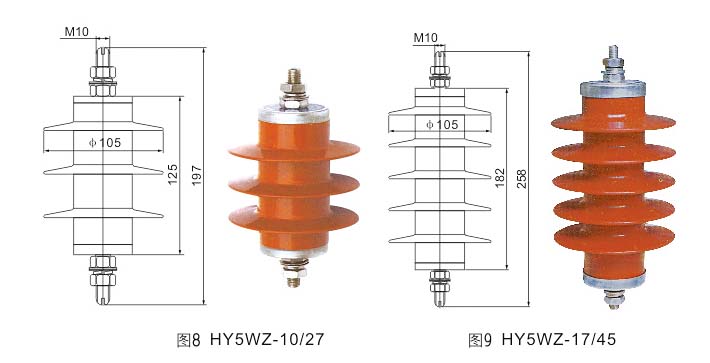

HY5WZ-10/27	6	10	8.0	15.0	31.0	27	23.0	150	65	图8
HY5WZ-17/45	10	17	13.6	24.0	51.5	45	38.3	150	65	图9

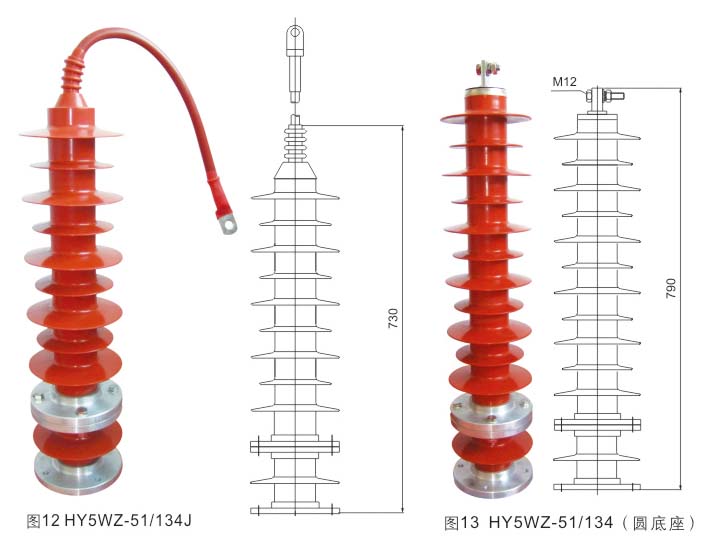

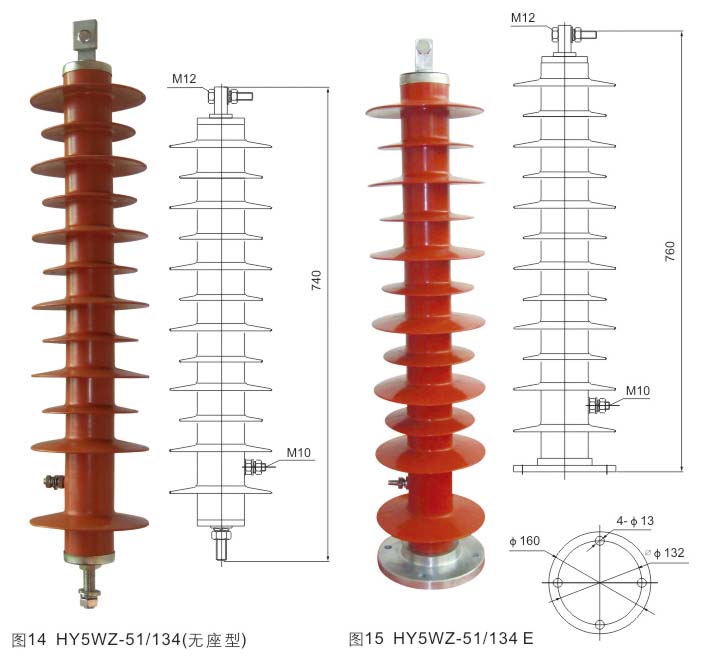

HY5WZ-51/134	35	51	40.8	73.0	154	134	114	400	65	图12~15
HY5WZ-54/134	35	54	43.2	77.0	154	134	114	400	100	图12~15

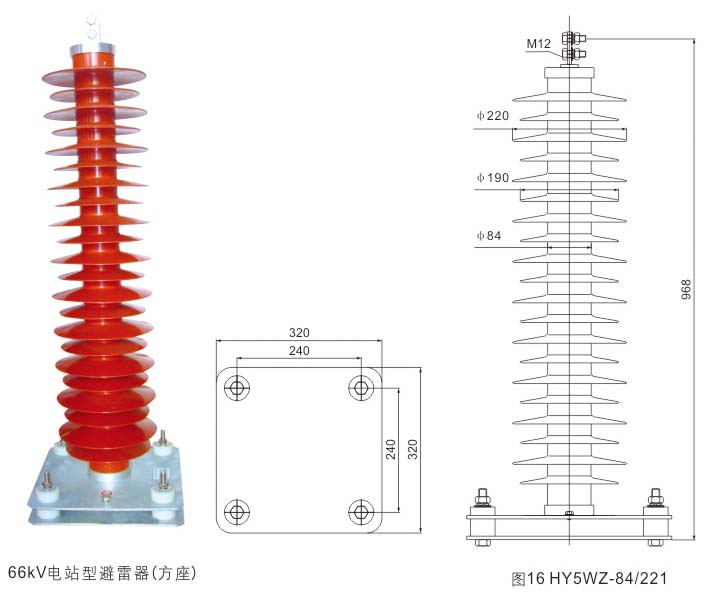

HY5W-84/221	66	84	67.2	121	254	221	188	600	100	图16

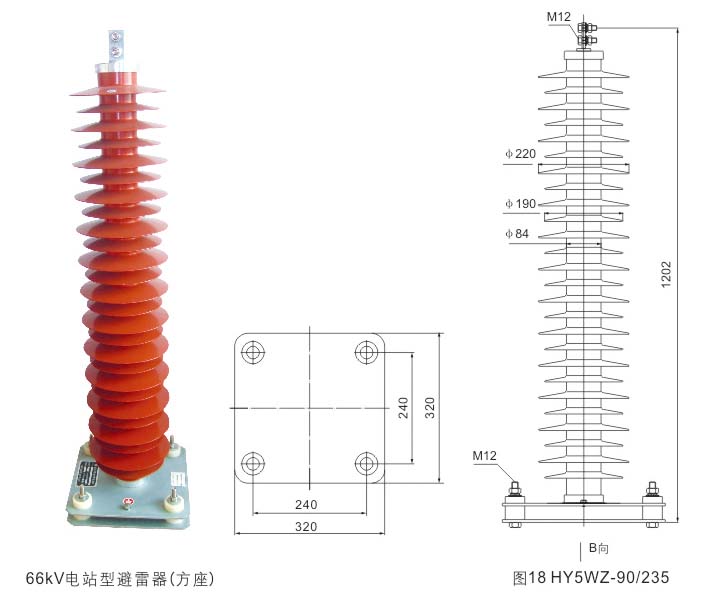

HY5W-90/235	66	90	72.5	130	270	235	201	600	100	图16
HY5W-100/260	110	100	78.0	145	299	260	221	600	100	图16
HY5W-108/281	110	108	84.0	157	323	281	239	600	100	图16
HY10WZ-51/134	35	51	40.8	73.0	154	134	114	400	100	图16~19
HY10WZ-54/134	35	54	43.2	77.0	154	134	114	400	100	图16~19
HY10W-90/235	66	90	72.5	130	264	235	201	600	100	图16
HY10W-96/250	110	96	76.8	140	280	250	212	600	100
HY10W-100/260	110	100	78.0	145	280	260	221	600	100
HY10W-108/281	110	108	84.0	157	314	281	239	600	100

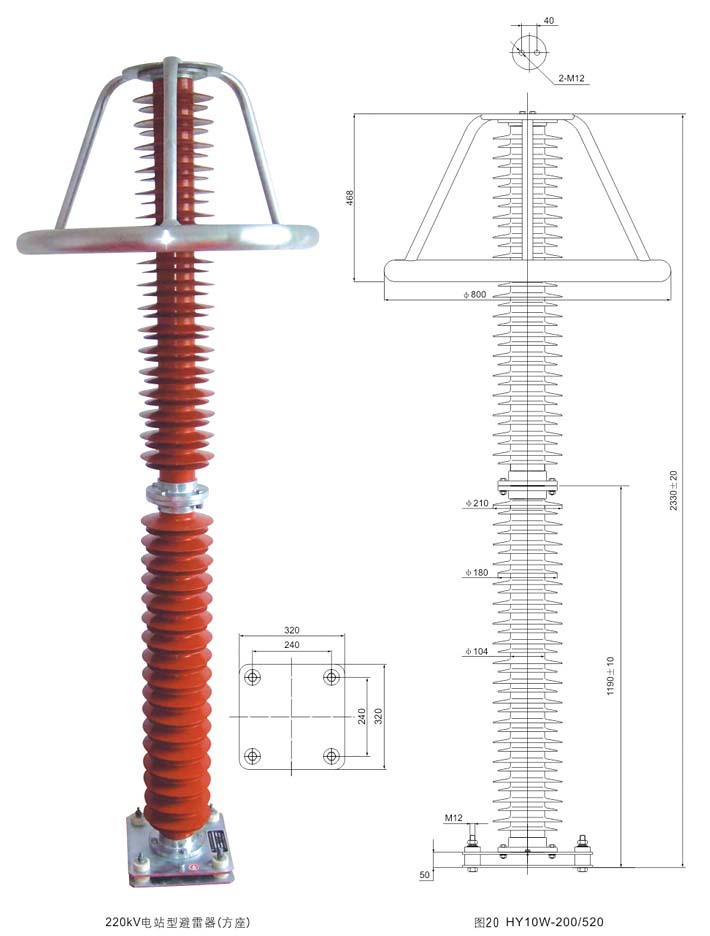

HY10W-192/500	220	192	150	280	560	500	424	800	100	图20
HY10W-200/520	220	200	156	292	582	520	442	800	100
HY10W-216/562	220	216	169	314	628	562	477	800	100
