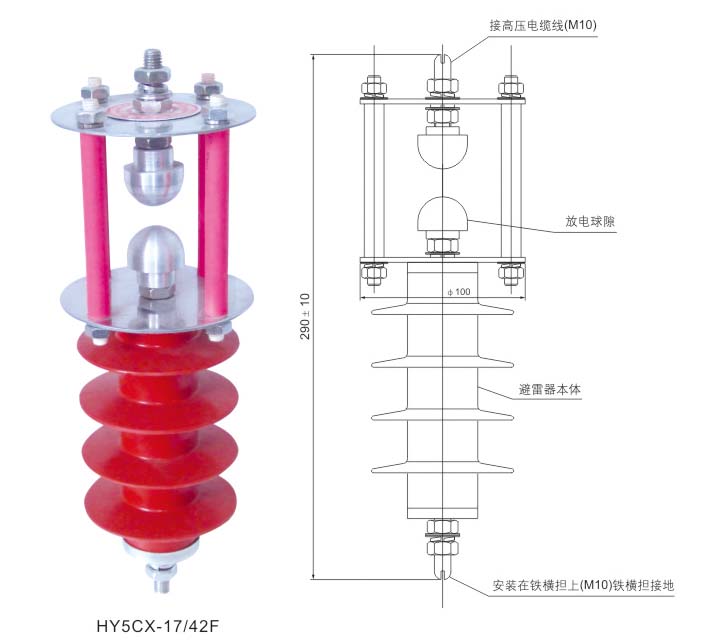

Outside the sphere gap discharge 10kV line composite MOA is designed to protect the design of a new type of line maintenance line arresters. Is dedicated to the lightning protection on the line, reducing the line caused by lightning trip rate. Private outdoor power equipment can be protected, such as oil, mining and extractive motors, transformers, etc..
|
type
|
System voltage
kV
|
Arrester rated voltage
kV
|
Frequency withstand voltage
≮kV
|
Impulse discharge voltage
≯kVp
|
Lightning impulse current residual voltage
≯kVp
|
Square wave flow capacity
A
|
|
HY5CX-10/23F
|
6
|
10
|
16
|
30
|
23
|
150
|
|
HY5CX-17/42F
|
10
|
17
|
26
|
60
|
42
|
150
|
Feature 1, limit lightning over-voltage, prevent lightning break.
2, improve line resistance to lightning levels, reduce tripping lightning accident rate.
3, the gap discharge voltage can be adjusted according to climatic conditions in different regions.
4, no lightning arrester does not participate in the line running, to extend the service life.
5, stable performance, no-clean maintenance.
6, for a variety of places to install.
7, easy to install, to avoid cumbersome regulation. Only required when installing the arrester mounted on the cross arm, arrester terminals can be connected high voltage bus. |
