Line gapless arresters - Wenzhou mingneng Electrical co.,ltd

MOA type	Sys R.V	MOA R.V	MCOV	D.C.U1mA	1/10μs Steep current impulse	8/20μs Lighting current impulse	30/60μs Switching current impulse	2ms Rectangular current impulse(2ms)	4/10μs High curerent impulse	Fig No
MOA type	kV(r.m.s)			≮kV	≯kV			A	kA	Fig No
HY5WX-17/50

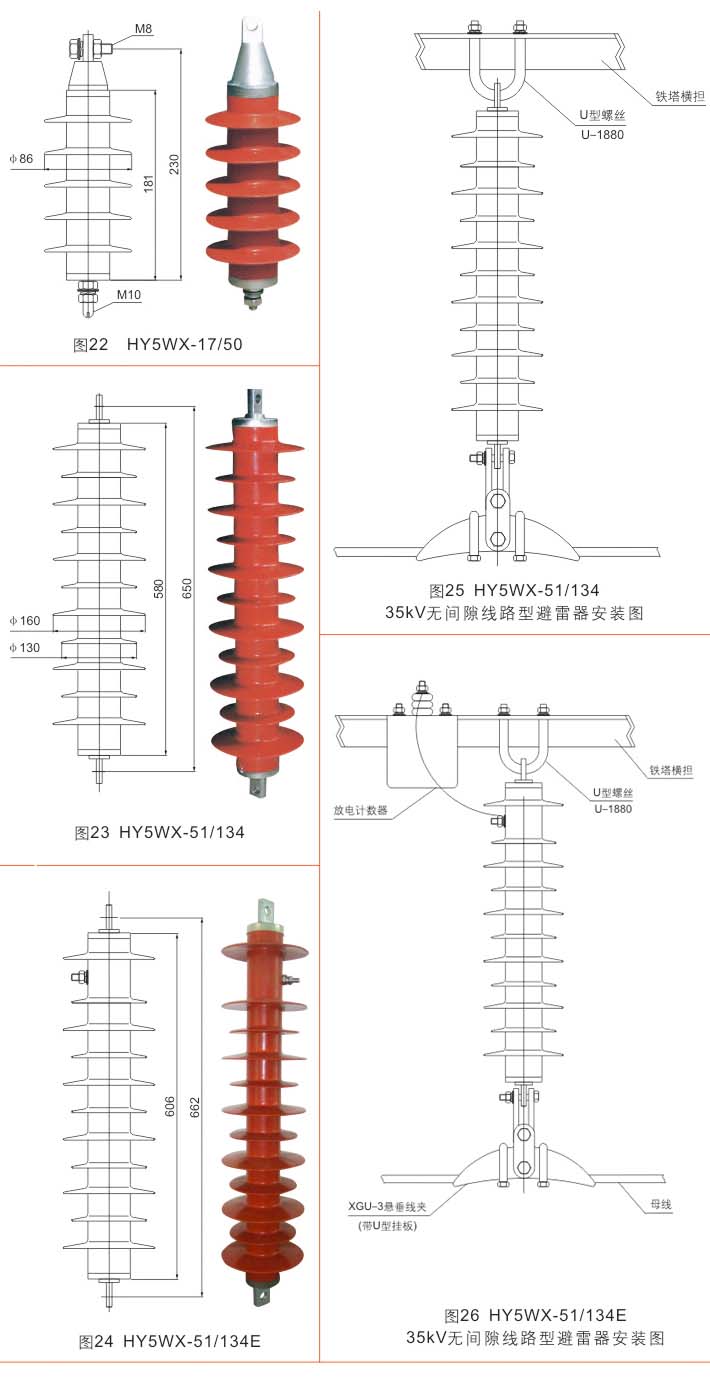

HY5WX-17/50	10	17	13.6	25.0	57.5	50	42.5	150	65	图22
HY5WX-51/134	35	51	40.8	73.0	154	134	114	400	100	图23
HY5WX-54/134	35	54	43.2	77.0	154	134	114	400	100	图23

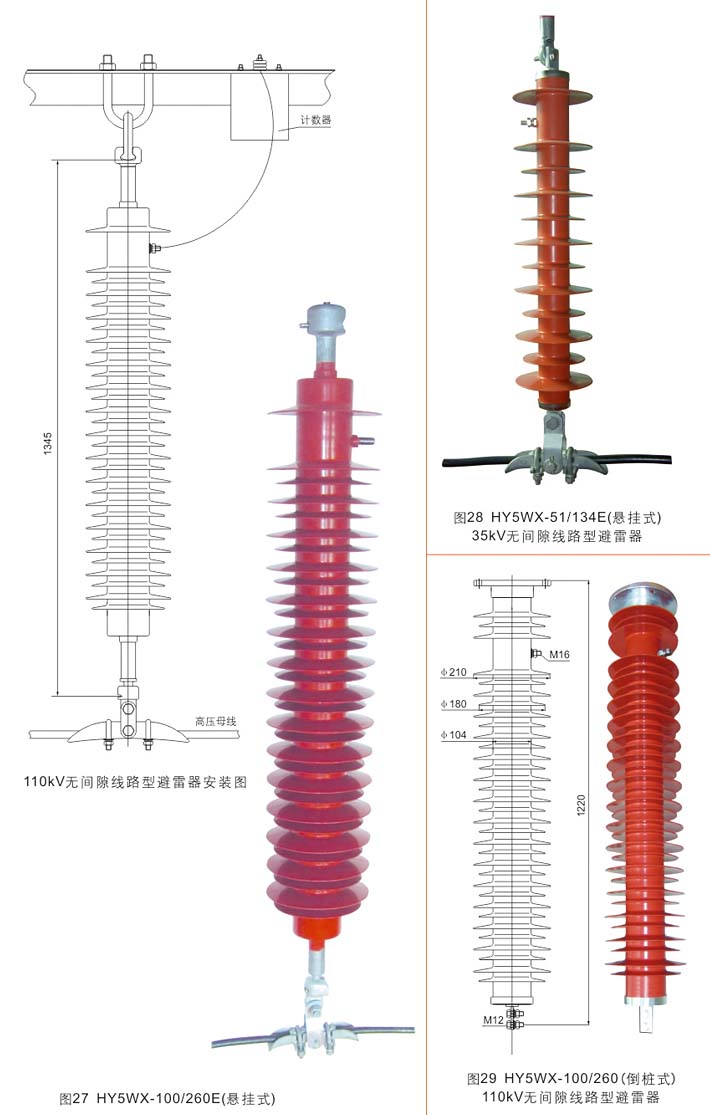

HY5WX-96/250	66	96	75	140	279	250	202	400	100	图27
HY10WX-96/250	66	96	75	140	279	250	202	400	100	图27
HY10WX-100/260	110	100	78	145	291	260	211	600	100	图27
HY10WX-102/265	110	102	81.6	152	297	265	225	600	100
HY10WX-108/281	110	108	86.4	157	314	281	239	600	100
HY10WX-114/300	110	114	91.2	165	336	300	255	600	100
HY10WX-120/320	110	120	96.0	174	358	320	272	600	100
HY10WX-126/328	110	126	100.8	183	367	328	279	600	100

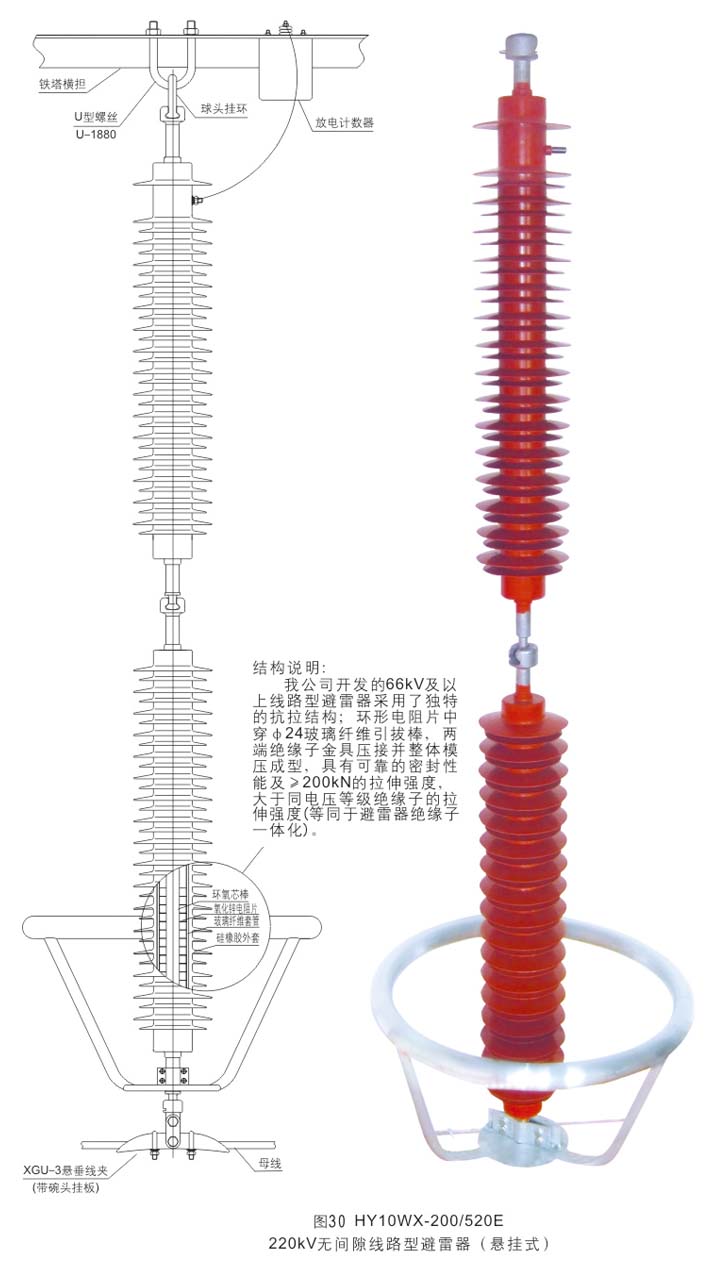

HY10WX-204/530	220	204	163.2	297	594	530	450	800	100	图30
HY10WX-216/562	220	216	172.8	314	628	562	478	800	100
HY10WX-228/600	220	228	182.4	331	627	600	510	800	100
HY10WX-240/640	220	240	192.0	349	716	640	544	800	100
HY10WX-252/656	220	252	201.6	366	734	656	558	800	100
