MOA type	Sys R.V	8/20μs Lighting current impulse	1.2/50μs current impulse	A.C.Voltage	D.C.U1mA	串联间隙距离	2ms Rectangular current impulse(2ms)	Fig No
MOA type	kV(r.m.s)	≯kVp	≯kVp	≮kV	≯kV	mm	A	Fig No

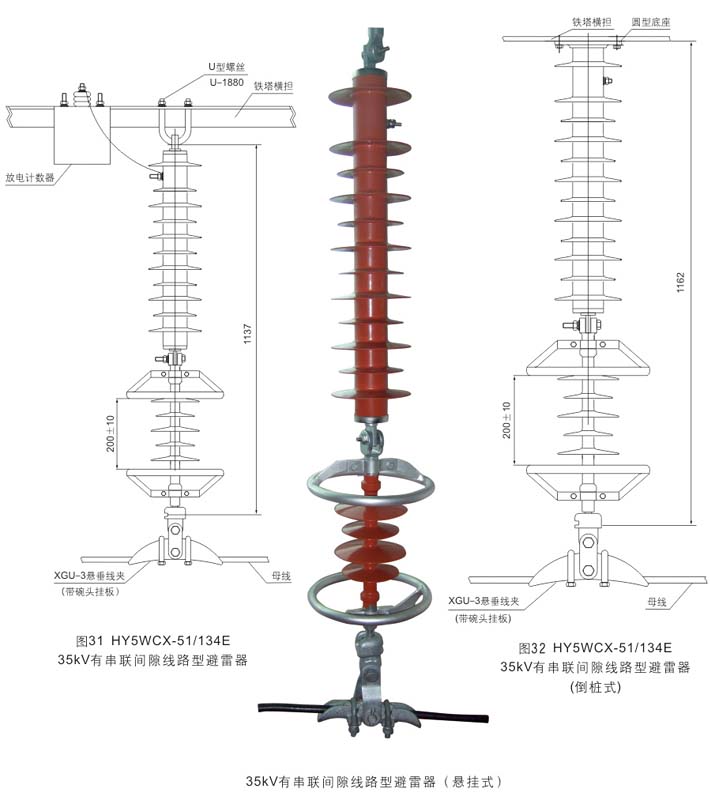

HY5CX-42/120	35	120	240	70	60	200±15	150	图31
HY5CX-51/134	35	134	249	70	73	200±15	150	图31

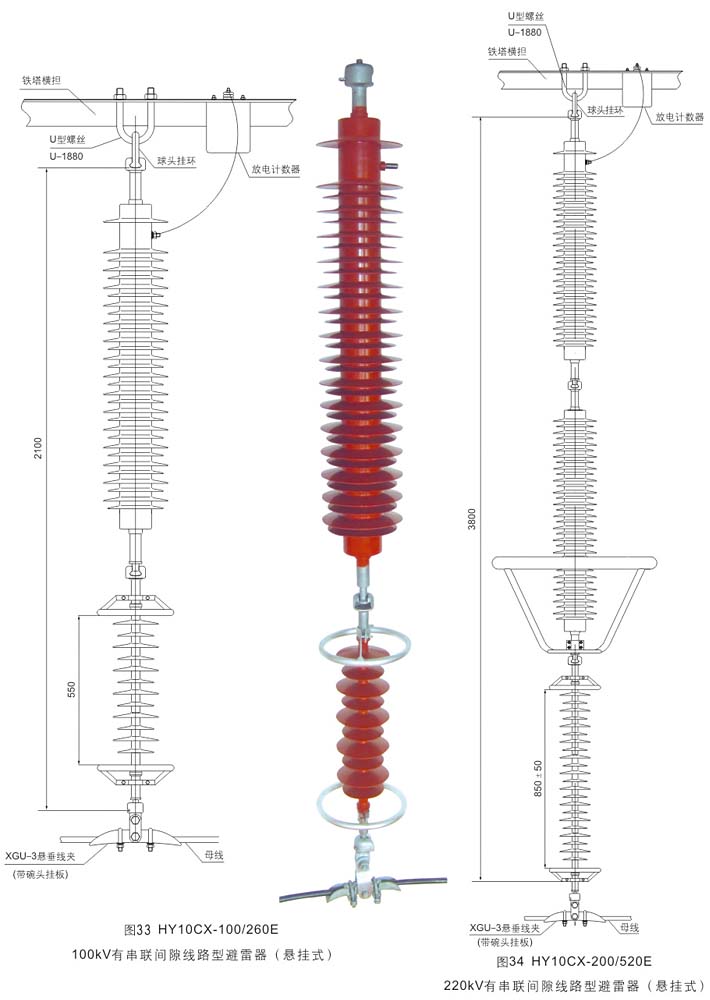

HY5CX-69/198	66	198	440	140	100	350±15	150	图33
HY10CX-84/240	66	240	525	147	132	485±15	500	图33
HY10CX-96/260	110	260	560	185	140	550±30	500	图33
HY5CX-100/260	110	260	560	185	145	550±30	600
HY10CX-108/280	110	280	560	185	160	550±30	600
HY10CX-192/520	220	560	960	370	280	850±50	600
HY10CX-216/560	220	560	960	370	320	850±50	600	图34
