Rod Tension composite insulators

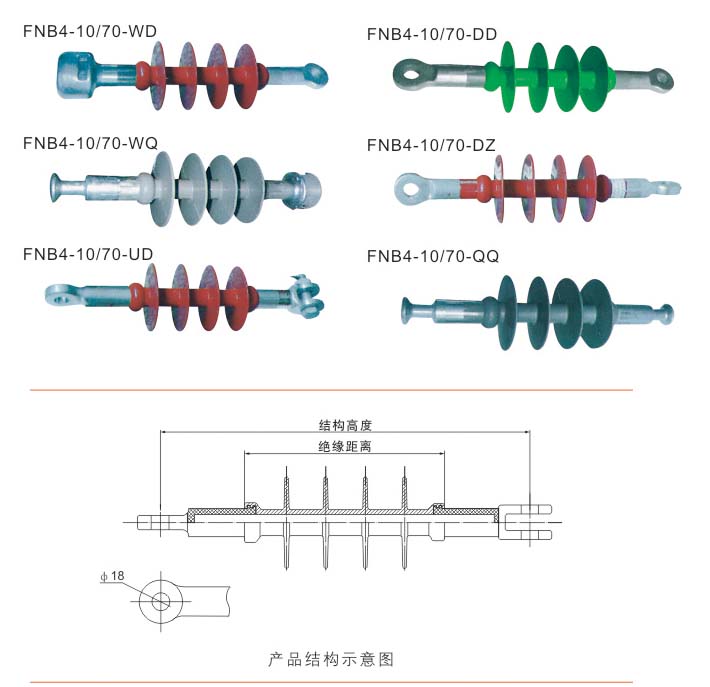

Picture show
Explanation
Rod Tension composite insulation for a variety of areas, especially dirty, heavy pollution areas. These products high tensile strength, stain resistance, impact resistance, easy installation, with a variety of connection fittings for users to choose to use.

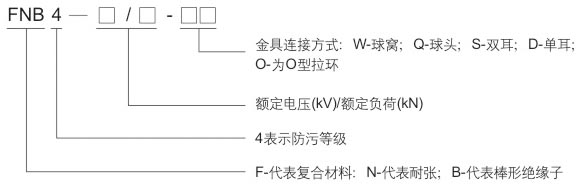

Model Description
Technical Data Sheet
Type Rated voltage
kV 		Rated mechanical tension load
kN 		Diameter of the umbrella
*Number umbrella(mm) 		Structural height
(mm)±10 		Insulation distance
(mm) 		Minimum nominal creepage distance
(mm) 		Lightning impulse withstand voltage
kV 		1 min Frequency wet withstand voltage
kV
FNB4-1/70-XX
1~3 70 92*2 270 80 235 30 7
FNB4-6/70-XX 6 70 92*3 310 120 335 60 25
FNB4-10/70-XX 10 70 92*4 350 160 435 95 45
FNB4-15/70-XX 15 70 92*5 390 200 535 110 60
FNB4-20/70-XX 20 70 92*6 430 240 635 130 70
FNB4-24/70-XX 24 70 92*7 470 280 735 150 75
FNB4-28/70-XX 28 70 92*8 510 320 835 180 80
FNB4-33/70-XX 33 70 92*9 550 360 935 205 90
FNB4-35/70-XX 35 70 92*10 590 400 1035 230 95
Both ends of the connection table fittings
Additional letters-XX WQ WD WS QQ DS DD SS SH HH
Representative fittings Ball Waterloo - Ball Head Ball Waterloo-Monaural Ball Waterloo-Binaural Ball Head
-Ball Head 		Monaural-Binaural Monaural-Monaural Binaural-Binaural Binaural-Ring Ring-Ring
Connection marker 16-16 16-16 16-16 16-16 16-16 16-16 16-16 16-16 16-16
