Composite pin insulator - Wenzhou mingneng Electrical co.,ltd

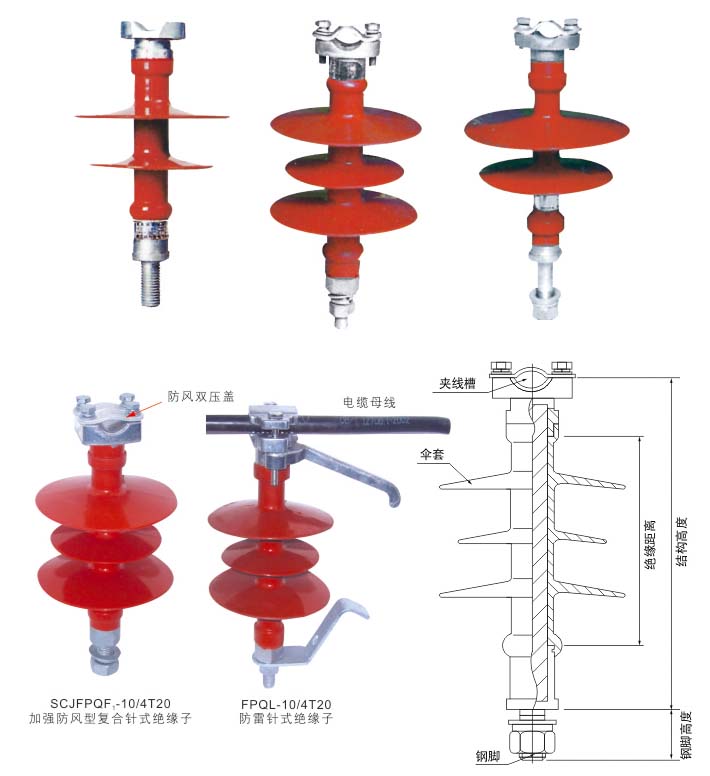

Composite pin insulator has a high resistance to bending, torsional strength, impact resistance, shock resistance and explosion-proof superior performance. Internal insulation reliable, light weight, easy to install, is the traditional porcelain insulators ideal replacement product.

Type	Rated voltage kV	Rated bending load kN	Steel pin thread Diameter * Length (mm)	Clamp range (mm)	Structural height (mm)±10	Insulation distance (mm)	Minimum nominal creepage distance (mm)	Lightning impulse withstand voltage kV	1 min Frequency wet withstand voltage kV
FPQ4-3/4T16
FPQ4-3/4T16	1~3	4	M16*40	Φ10~30	220	152	400	45	20
FPQ4-10/4T16	6~12	4	M16*40	Φ16~30	260	165	460	95	30
FPQ4-10/5T16	6~12	5	M16*40	Φ16~30	260	165	460	95	30
FPQ4-10/6T16	6~12	6	M16*40	Φ16~30	220	152	400	95	30
FPQ4-10/6T18	6~12	6	M18*40	Φ16~30	220	152	400	95	30
FPQ4-10/4T18	6~12	4	M18*40	Φ16~30	260	165	460	95	30
FPQ4-10/5T18	6~12	5	M18*40	Φ16~30	260	165	460	95	30
FPQ4-10/4T20	6~12	4	M20*40	Φ16~30	260	165	460	95	30
FPQ4-10/5T20	6~12	5	M20*40	Φ16~30	260	165	460	95	30
