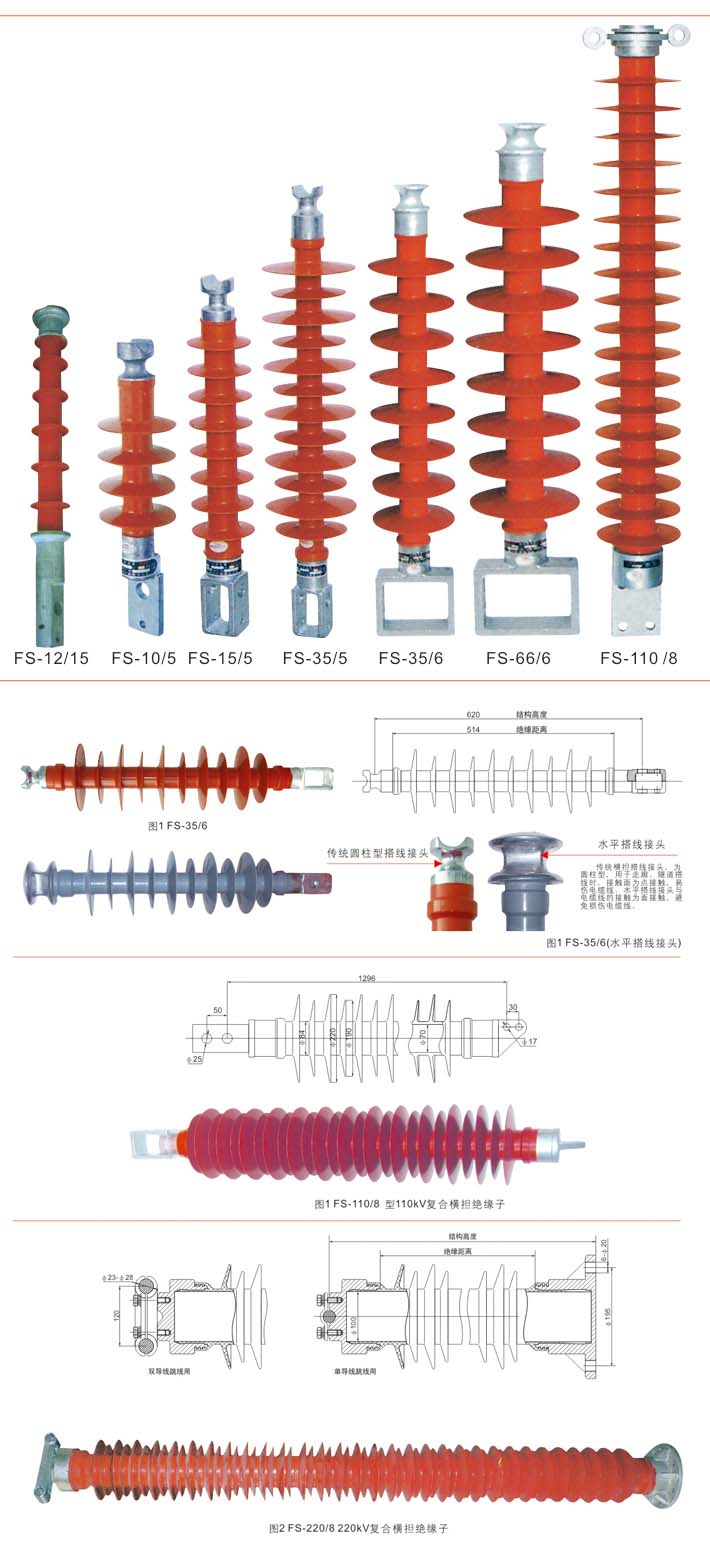

Composite crossarm insulators
Picture show
Explanation

Composite crossarm insulators for power transmission urban network transformation projects, especially the effective use of the narrow corridor area of the city, various tunnels boost power transmission. And can reduce the tower height, save a lot of financial and material resources. These products high bending strength, anti-fouling properties, seismic, impact resistance, anti-brittle performance, small size, light weight, easy to install impact-resistant, maintenance-free manual cleaning, porcelain cross arm is irreplaceable product.



Technical Data Sheet
Type Rated voltage
kV
Rated bending load
kN
Structural height
(mm)±10
Insulation distance
(mm)
Minimum nominal creepage distance
(mm)
Lightning impulse withstand voltage
kVp
1 min Frequency wet withstand voltage
kV
FS-10/5 10 5 250±10 180 380 75 42
FS-10/5 10 5 480±10 320 440 150 60
FS-15/5 15 5 440±10 260 545 160 70
FS-35/5 35 5 640±10 513 1480 265 100
FS-35/6 35 6 620±10 480 1520 265 100
FS-66/6 66 6 1025±10 815 2080 450 185
FS-66/10 66 10 1025±10 815 2200 450 185
FS-110/8 110 8 1270±15 1100 3988 550 230
FS-110/10 110 10 1260±15 1070 3988 550 230
FS-220/6 220 6 2200±20 1950 6400 1050 395
FS-220/8 220 8 2260±10 1860 6800 1050 395
