LXQ3 type voltage transformer neutral point with nonlinear resistors harmonic elimination damper (SR-off resonance eliminator) is installed in the 6-35kV voltage transformer (referred to as PT) a winding (or secondary winding) Y. Tie line between neutral and ground resistance of a one hundred linear damped harmonic elimination device. And traditional RXQ harmonic elimination compared, LXQ harmonic elimination harmonic elimination from the increased heat capacity of departure in the design of a larger improvement. Harmonic elimination uses electrical Kong students grade superior, ultrafine particles SIC as the base material, the large-tonnage hydraulic machine pressed into high-density body, in a reducing atmosphere by thousands of degrees high temperature sintering. Exposed surface of the resistor structure is specially treated with anti-rain function (SIC harmonic elimination is one of the main indicators of bowel movements after Ling washout not explode), can be used directly outdoors. New LXQ harmonic elimination because of its small size, light weight, high strength, heat dissipation, eliminating the mass RXQ harmonic elimination porcelain shell, but also easy to install, very popular with users of all ages.
Production executive GB GB / T 16927, enterprise standard Q/MN.J-2005
Product Features
1, harmonic elimination or damping caused by the voltage transformer ferroresonance voltage transformers to avoid internal and external insulation breakdown, discharge;
2, limiting system in single-phase or arc grounding flow through the transformer winding current and voltage transformers to avoid burning;
3, small size, light weight, easy to install, convenient and flexible.
Conditions of Use 1, ambient temperature: -40 ℃ ~ +40 ℃;
2, Power frequency: 48Hz ~ 62Hz;
3, 8 degree earthquake intensity and the following areas;

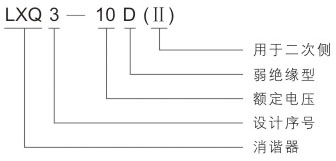

4, although the rain function harmonic elimination, but not long withstand direct sun and rain Model Description Electrical Performance
|
Voltage level
|
DC Characteristics
(kV/mA)
|
Nonlinear coefficient
(α)
|
Under voltage AC 0.3mA
V(Peak/ )
|
Under voltage AC 3mA
V(Peak/)
|
Heat capacity
250mA/10min
|
|
6kV、10kV
|
1.45～1.65/15
|
0.40～0.45
|
130±50
|
500±100
|
pass
|
|
35kV
|
4.0～4.2/42
|
0.40～0.45
|
450±50
|
1400±150
|
pass
|
|
6kV、10kV(Secondary side)
|
1.60～1.70/15
|
0.40～0.45
|
110±50
|
400±100
|
pass
|
|
6kV、10kV(Subminiature)
|
1.60～1.70/15
|
0.40～0.45
|
120±50
|
450±100
|
pass
|
Use the Select Harmonic elimination choices are listed in the following table, such as a user with the voltage transformer (transformer) Model not found in the table, can be used in the insulation structure comparison table refer to the use of similar models.
|

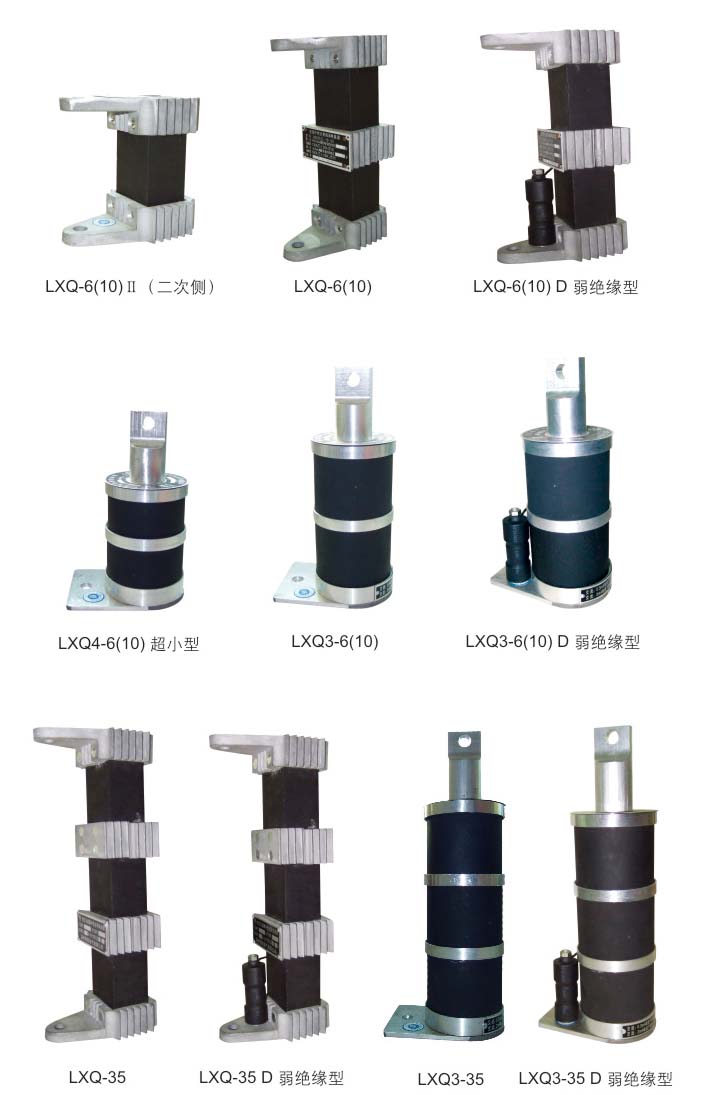

Suitable optional LXQ-, LXQ3-, LXQ4-type transformer models
|
Suitable optional LXQ-(D), LXQ3-(D), weak insulation of transformer models
|
|
JDZJ-6,10
|
JSJW-6,10
|
JDEJ-6,10
|
JDZX6-6,10
|
JDZX8-6,10,35G
|
JDZX9-6,10,35
|
|
JDEW-6,10
|
JDJW-6,10G
|
JDZB-6,10
|
JDZX10-6,10
|
JDZX11-6,10,35
|
JDZXR1-6,10
|
|
JDZX7-6,10
|
JDJJ-35
|
JDJJ1-35
|
JDZXR2-6,10
|
|
|
|
JDJJ2-35
|
JDX6-35
|
JDX7-35
|
UNE10,35
|
REL10
|
URE10,35
|
|
JDZX-35
|
JDXW-35
|
|
URED10
|
UNEW35
|
|

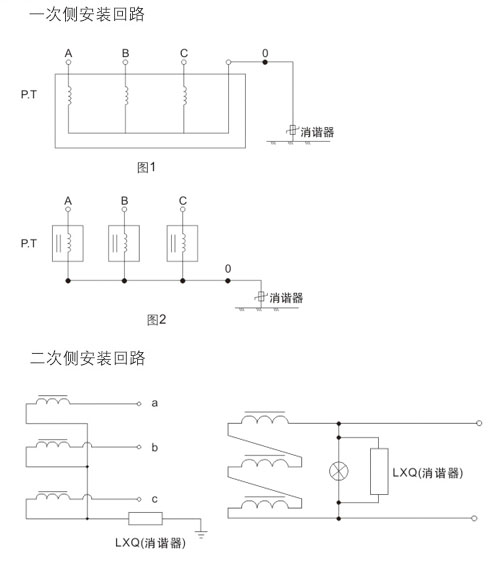

Install loop reference |
